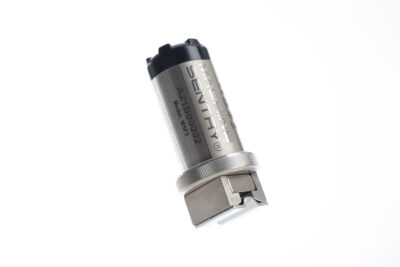

Machine Sentry® Fixed MSF-2

Machine Sentry Fixed MSF-2 is the latest triaxial vibration and temperature sensor from AVT Reliability® and has an improved battery life, frequency range, data transfer speed and memory.

Machine Sentry® Fixed (MSF2)

The MSF2 sensor is designed to support proactive condition monitoring across a wide range of industrial equipment including compressors, pumps, and motors. By measuring critical parameters in real time, MSF2 helps detect faults early and reduce the risk of unexpected failure.

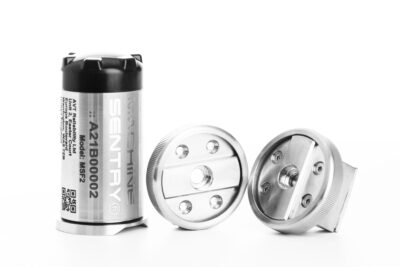

Its wireless design allows for easy installation in hard-to-access or hazardous areas. Sensors can be temporarily attached using a magnetic mount or permanently installed for continuous or semi-continuous monitoring of your assets.

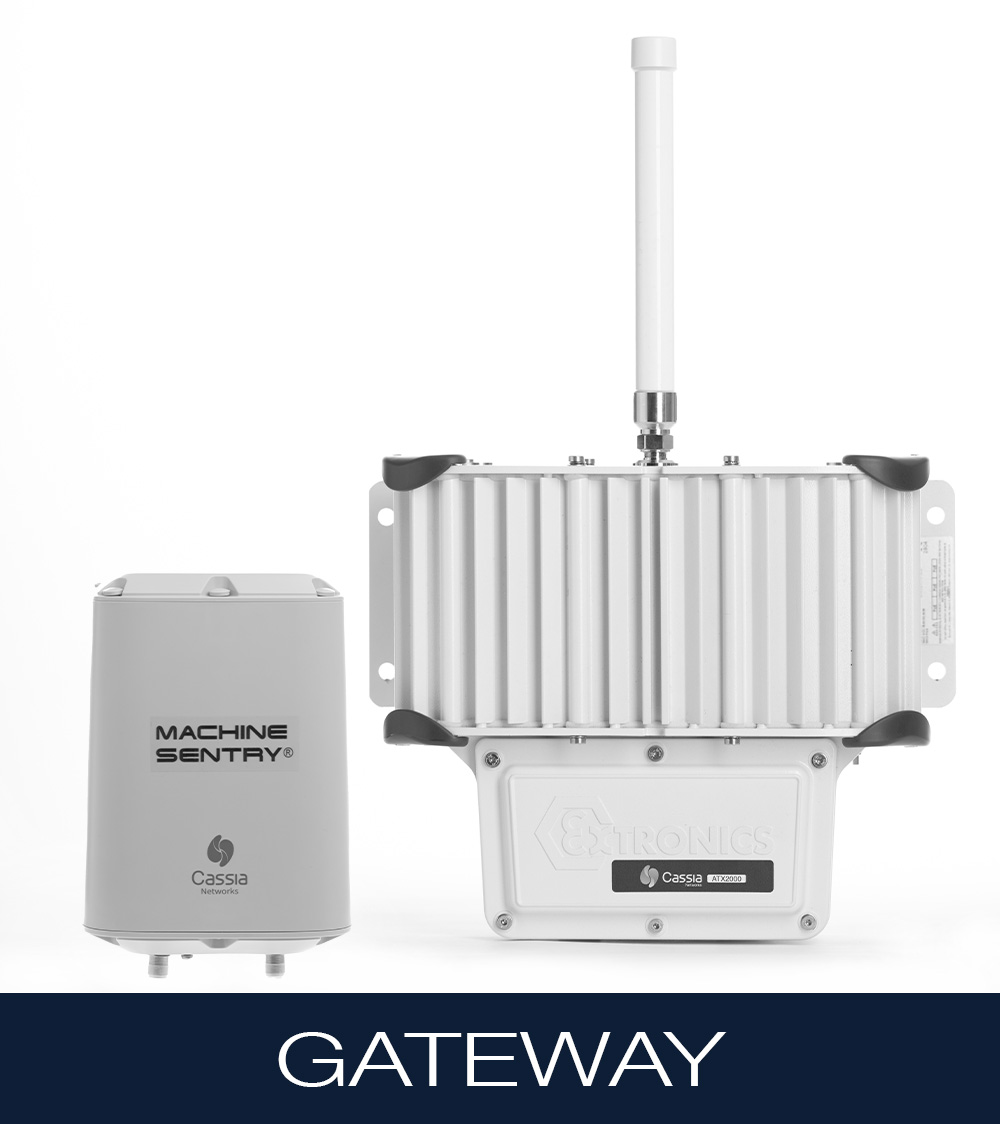

Data can be captured via Bluetooth® to a handheld Android device, or remotely via the Machine Sentry® Gateway, which connects over 100 sensors and uploads condition data directly to the Machine Sentry® database for ongoing reliability insights.

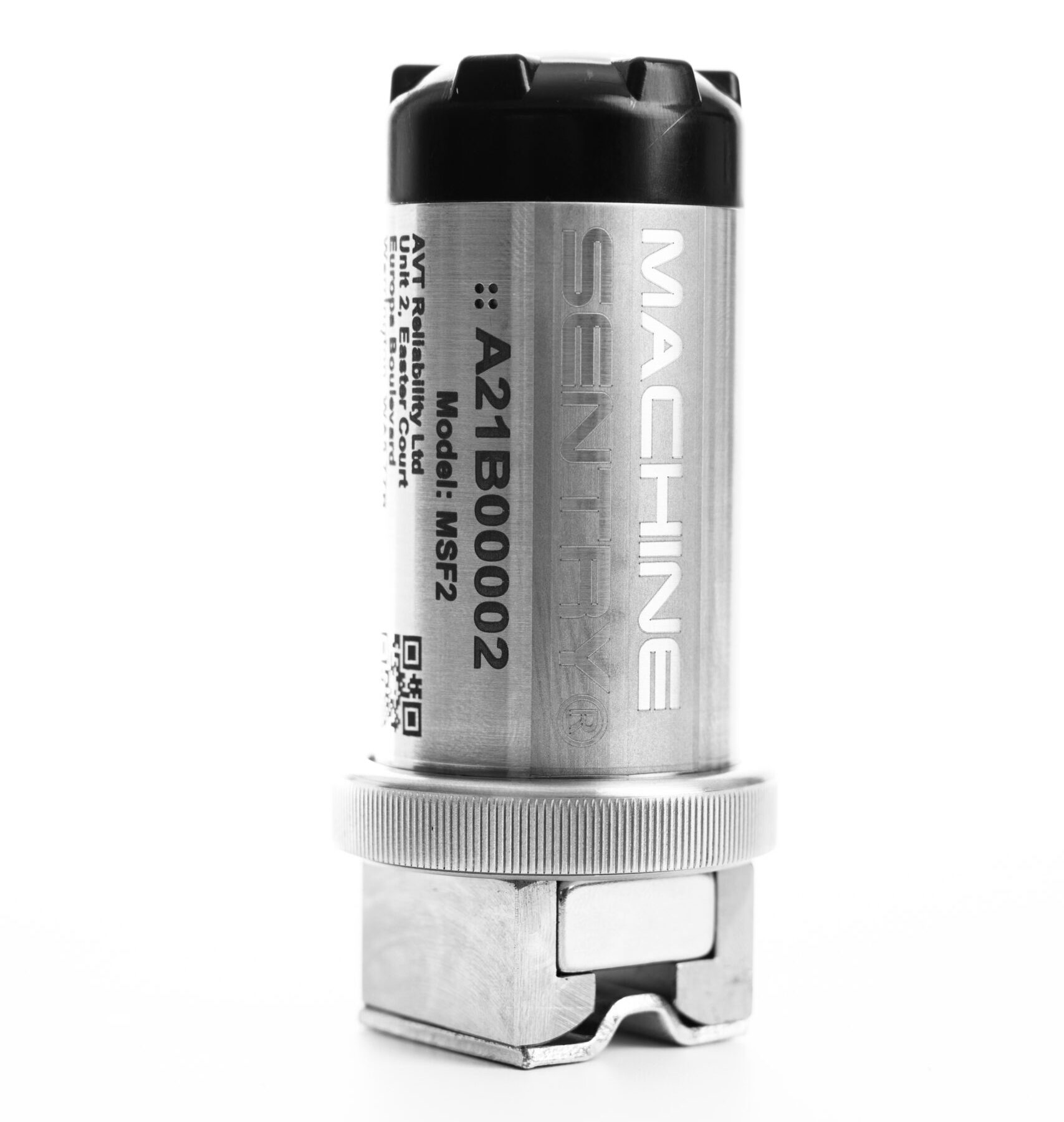

Machine Sentry Fixed MSF2 wireless sensor

Machine Sentry® Fixed (MSF2) Features

Wide Frequency Range: Measures from 1Hz to 8.5kHz for comprehensive fault detection

Onboard Storage: Internal memory holds over 5,000 readings for offline use

Bluetooth® Enabled: Allows high-speed data transfer to Android devices or gateways

Configurable Acquisition: Supports programmable data collection intervals

Replaceable Battery: Up to 5 years of performance in typical operating conditions

Hazardous Area Rated: Certified for use in Gas Zone 0 and Dust Zone 20

IP67 Protection: Fully sealed for harsh industrial environments

Machine Sentry® Fixed (MSF2) Certifications

ATEX

EN IEC 60079-0: 2018
EN 60079-11: 2012
II 1 G Ex ia IIC T4 Ga Ta = -20°C to +60°C
II 1 D Ex ia IIIC T135°C Da Ta = -20°C to +60°C
CML 22ATEX2395X

UKEX

EN IEC 60079-0: 2018
EN 60079-11: 2012
II 1 G Ex ia IIC T4 Ga Ta = -20°C to +60°C
II 1 D Ex ia IIIC T135°C Da Ta = -20°C to +60°C
CML 22UKEX2396X

IECEx

IEC 60079-0: 2017
IEC 60079-11: 2011
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
IECEx CML 22.0054X

Hazloc

Class I & II Division 1 Groups A-G T4
Class II Division 1 Groups A-G T135°C
Class I Zone 0 AEx ia IIC T4 Ga
Class II Zone 20 AEx ia IIIC T135°C Da

ATEX

EN IEC 60079-0: 2018
EN 60079-11: 2012
II 1 G Ex ia IIC T4 Ga Ta = -20°C to +60°C
II 1 D Ex ia IIIC T135°C Da Ta = -20°C to +60°C
CML 22ATEX2395X

UKEX

EN IEC 60079-0: 2018
EN 60079-11: 2012
II 1 G Ex ia IIC T4 Ga Ta = -20°C to +60°C
II 1 D Ex ia IIIC T135°C Da Ta = -20°C to +60°C
CML 22UKEX2396X

IECEx

IEC 60079-0: 2017
IEC 60079-11: 2011
Ex ia IIC T4 Ga
Ex ia IIIC T135°C Da
IECEx CML 22.0054X

Hazloc

Class I & II Division 1 Groups A-G T4
Class II Division 1 Groups A-G T135°C
Class I Zone 0 AEx ia IIC T4 Ga
Class II Zone 20 AEx ia IIIC T135°C Da

Machine Sentry® Fixed (MSF2) Applications

The MSF2 sensor is simple to install and versatile enough to support a wide range of industrial use cases. Whether it’s critical assets or difficult-to-reach locations, MSF2 enables reliable data collection for smarter maintenance decisions.

Semi-Continuous Condition Monitoring

Temporary Intensive Monitoring

Critical Asset Reliability Monitoring

Batch or Variable Process Equipment

Assets in Hard-to-Reach Locations

Monitoring Bad Actors or High-Risk Assets
